- Pronunciación: [ glæs ] (AFI)
- Flexión: Plural: glasses
- (Física, Química) Sustancia amorfa (no cristalina).
Un mito popular es que los vidrios son en realidad un líquido muy viscoso.
- Nota: Se utiliza tanto en el sentido de recipiente como de unidad de medida.
Términos derivadosEditar sección
En otros idiomas Editar sección
Pulsar editar para ver lista completa.

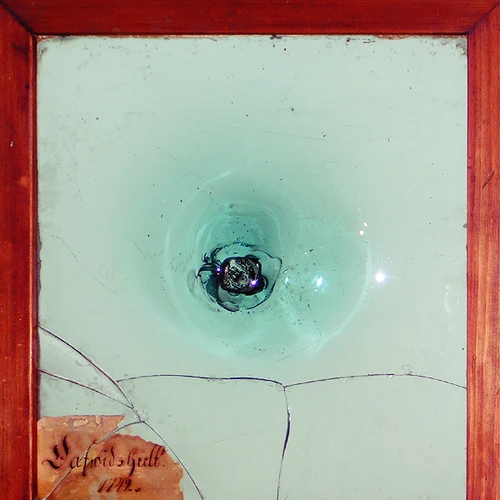

Glass productionEditar sección
Glass ingredientsEditar sección
Pure silica (SiO2) has a "glass melting point"— at a viscosity of 10 Pa·s (100 P)— of over 2300 °C (4200 °F). While pure silica can be made into glass for special applications (see fused quartz), other substances are added to common glass to simplify processing. One is sodium carbonate (Na2CO3), which lowers the melting point to about 1500 °C (2700 °F) in soda-lime glass; "soda" refers to the original source of sodium carbonate in the soda ash obtained from certain plants. However, the soda makes the glass water soluble, which is usually undesirable, so lime (calcium oxide (CaO), generally obtained from limestone), some magnesium oxide (MgO) and aluminium oxide are added to provide for a better chemical durability. The resulting glass contains about 70 to 74 percent silica by weight and is called a soda-lime glass. Soda-lime glasses account for about 90 percent of manufactured glass.
As well as soda and lime, most common glass has other ingredients added to change its properties. Lead glass, such as lead crystal or flint glass, is more 'brilliant' because the increased refractive index causes noticeably more "sparkles", while boron may be added to change the thermal and electrical properties, as in Pyrex. Adding barium also increases the refractive index. Thorium oxide gives glass a high refractive index and low dispersion, and was formerly used in producing high-quality lenses, but due to its radioactivity has been replaced by lanthanum oxide in modern glasses. Large amounts of iron are used in glass that absorbs infrared energy, such as heat absorbing filters for movie projectors, while cerium(IV) oxide can be used for glass that absorbs UV wavelengths (biologically damaging ionizing radiation).
Besides the chemicals mentioned, in some furnaces recycled glass ("cullet") is added, originating from the same factory or other sources. Cullet leads to savings not only in the raw materials, but also in the energy consumption of the glass furnace. However, impurities in the cullet may lead to product and equipment failure. Fining agents such as sodium sulfate, sodium chloride, or antimony oxide are added to reduce the bubble content in the glass.
A further raw material used in the production of soda-lime and fiber glass is calumite, which is a glassy granular by-product of the iron making industry, containing mainly silica, calcium oxide, alumina, magnesium oxide (and traces of iron oxide).
For obtaining the desired glass composition, the correct raw material mixture (batch) must be determined by glass batch calculation.
Contemporary glass productionEditar sección
Following the glass batch preparation and mixing the raw materials are transported to the furnace. Soda-lime glass for mass production is melted in gas fired units. Smaller scale furnaces for specialty glasses include electric melters, pot furnaces and day tanks.
After melting, homogenization and refining (removal of bubbles) the glass is formed. Flat glass for windows and similar applications is formed by the float glass process, developed between 1953 and 1957 by Sir Alastair Pilkington and Kenneth Bickerstaff of the UK's Pilkington Brothers, which created a continuous ribbon of glass using a molten tin bath on which the molten glass flows unhindered under the influence of gravity. The top surface of the glass is subjected to nitrogen under pressure to obtain a polished finish. Container glass for common bottles and jars is formed by blowing and pressing methods. Further glass forming techniques are summarized in the table Glass forming techniques.
Once the desired form is obtained, glass is usually annealed for the removal of stresses.
Various surface treatment techniques, coatings, or lamination may follow to improve the chemical durability (glass container coatings, glass container internal treatment), strength (toughened glass, bulletproof glass, windshields), or optical properties (insulated glazing, anti-reflective coating).
Glassmaking in the laboratoryEditar sección
New chemical glass compositions or new treatment techniques can be initially investigated in small-scale laboratory experiments. The raw materials for laboratory-scale glass melts are often different from those used in mass production because the cost factor has a low priority. In the laboratory mostly pure chemicals are used. Care must be taken that the raw materials have not reacted with moisture or other chemicals in the environment (such as alkali oxides and hydroxides, alkaline earth oxides and hydroxides, or boron oxide), or that the impurities are quantified (loss on ignition). Evaporation losses during glass melting should be considered during the selection of the raw materials, e.g., sodium selenite may be preferred over easily evaporating SeO2. Also, more readily reacting raw materials may be preferred over relatively inert ones, such as Al(OH)3 over Al2O3. Usually, the melts are carried out in platinum crucibles to reduce contamination from the crucible material. Glass homogeneity is achieved by homogenizing the raw materials mixture (glass batch), by stirring the melt, and by crushing and re-melting the first melt. The obtained glass is usually annealed to prevent breakage during processing.
|Esta página tiene contenido de Wikipedia. El Artículo original es Glass. La lista de autores la puedes ver en Historial. El texto de Wikipedia esta disponible bajo Licencia Creative Commons Atribución/Compartir-Igual 3.0.|
Texto en negrita
Error en la cita: Existen etiquetas
<ref>, pero no se encontró una etiqueta
